2048x1-T2
2048x1 (cooling version)
InGaAs linear sensor with 2048 x 1 pixel
InGaAs linear sensor with 2048 x 1 pixel
Square pixel 12.5x12.5μm
The sensors are sensitive in the standard InGaAs spectral range of 0.9 – 1.7 µm.

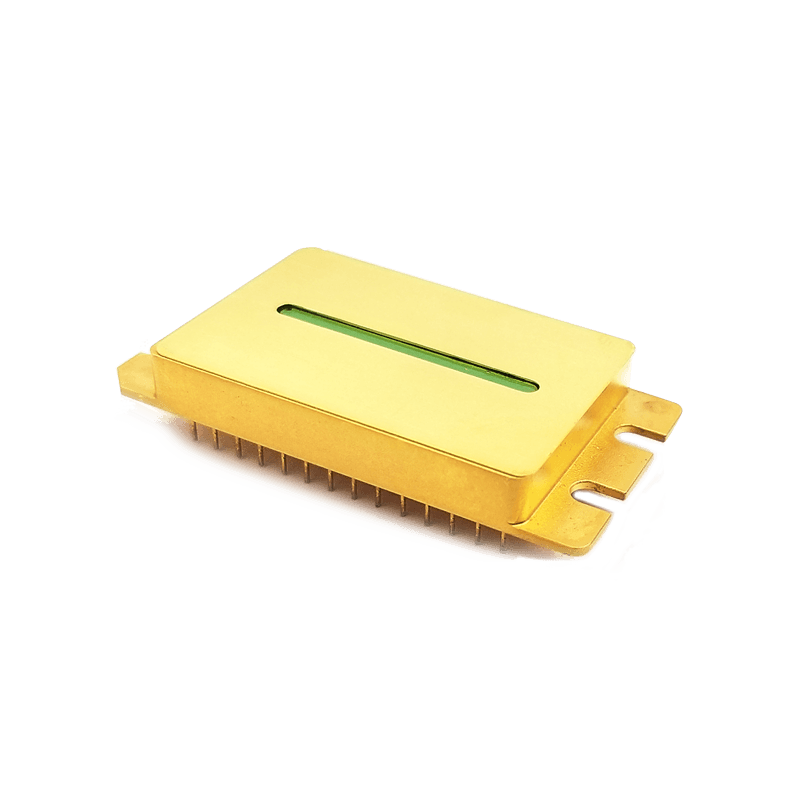

Packaged in a 28-pin metal DIP package with an integrated 2-stage thermoelectric cooler, for a chip operating temperature of -40 ℃(higher and lower temperatures are also possible).
The linear sensor consists of a linear InGaAs photodiode array connected to 2 integrated p-on-n readout circuits.
The pixel operability is > 99% and the quantum efficiency is > 70% at 1550 nm. Multiple gain settings are possible.
The sensors support SPI protocol for command register setting. The sensor's amplification, control of the sensor's power consumption, and the pixel-by-pixel order of the output signal can also be adjusted.
The sensors are sensitive in the standard InGaAs spectral range of 0.9 – 1.7 µm.
Packaged in a 28-pin metal DIP package with an integrated 2-stage thermoelectric cooler, for a chip operating temperature of -40 ℃(higher and lower temperatures are also possible).
The linear sensor consists of a linear InGaAs photodiode array connected to 2 integrated p-on-n readout circuits.
The pixel operability is > 99% and the quantum efficiency is > 70% at 1550 nm. Multiple gain settings are possible.
The sensors support SPI protocol for command register setting. The sensor's amplification, control of the sensor's power consumption, and the pixel-by-pixel order of the output signal can also be adjusted.
| No. | Part no. | Data Sheet | photo | Number of Effective Pixels | Pixel Size (μm) | Pixel Pitch (μm) | Image Size (mm) | Spectral Range | Line Rate | Package | Cooling | |
| 1 | LDA2048P12.5S-17-T2 |  |  | 2048x1 pixels | 12.5x12.5 | 12.5 | 25.5 x 9.8 | 900-1700 nm | 80 KHz | Kovar | 2-stage-TE-Cooled | |
