FPA0064P40-17-C
Model No. : FPA0064P40-17-C
With light weight 32CLCC package

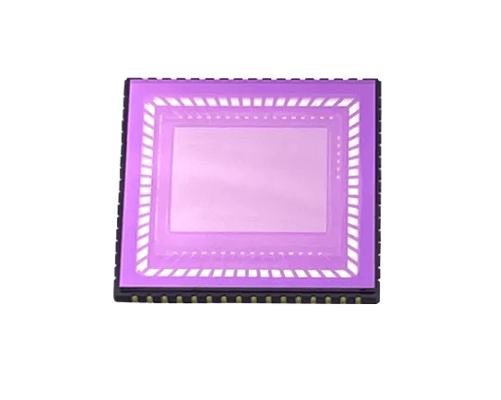

This device features a 64 × 64 array format and operates over a spectral range of 0.9–1.7 μm. It is packaged in a 32-pin CLCC package and delivers high reliability with a typical pixel operability exceeding 99.5%. The sensor offers a quantum efficiency greater than 70% and includes a built-in temperature sensor for enhanced thermal monitoring. A pixel rate of up to 2 MHz is supported, enabling stable and efficient signal readout.
| No. | noPart . | Data Sheet | photo | Product Name | Number of Effective Pixels | Pixel Size (μm) | Pixel Pitch (μm) | Image Size (mm) | Spectral Response Range | Frame Rate | Package | Cooling | |
| 1 | FPA0064P40-17-C |  |  | InGaAs area image sensor | 64x64 | 40x40 | 40 | 2.56x2.56 | 900-1700 nm | - fps | CLCC | Un-Cooled | |
